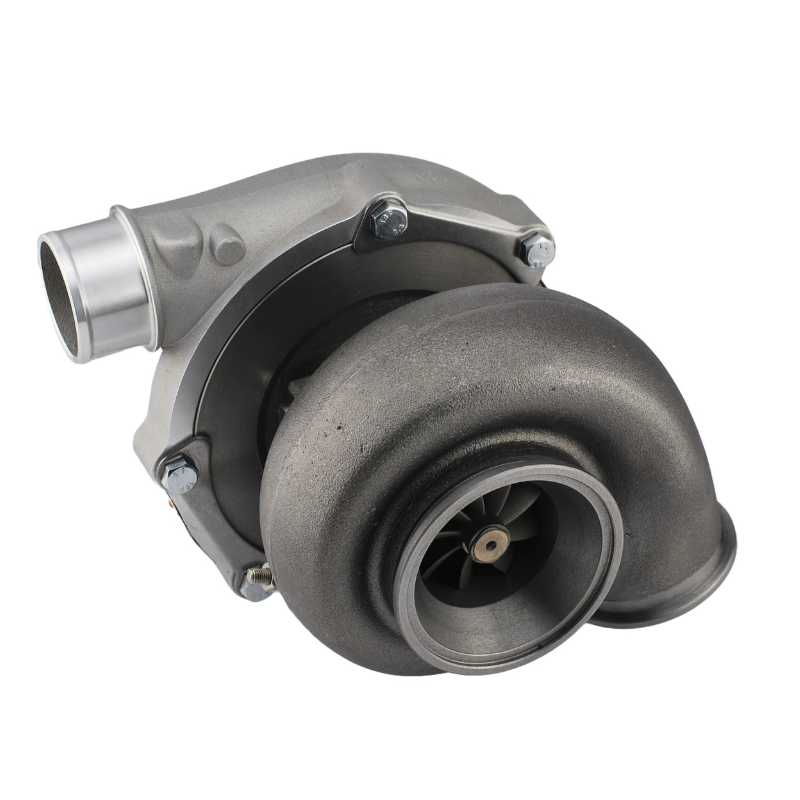

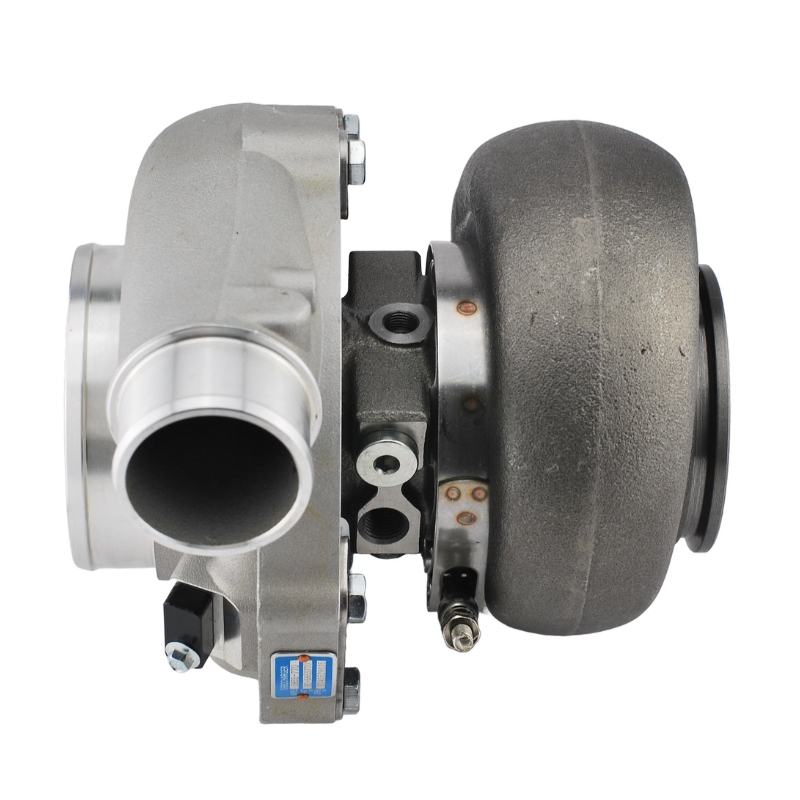

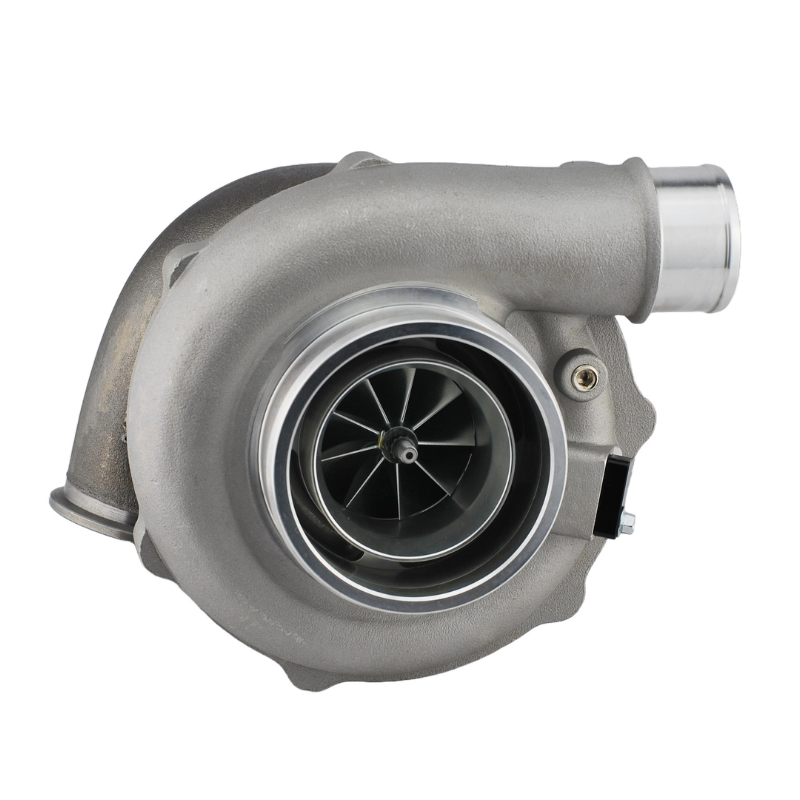

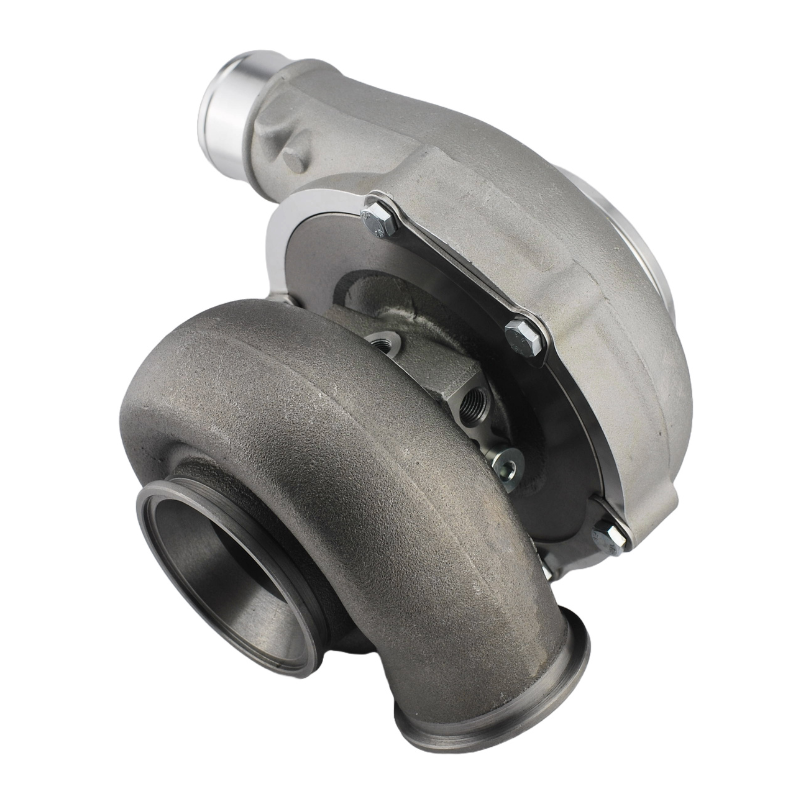

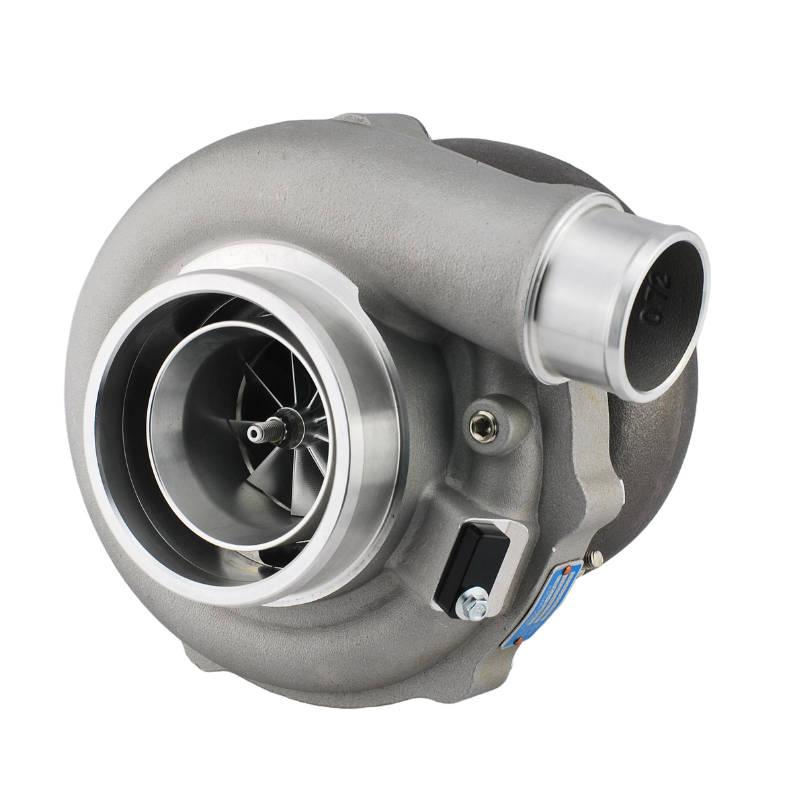

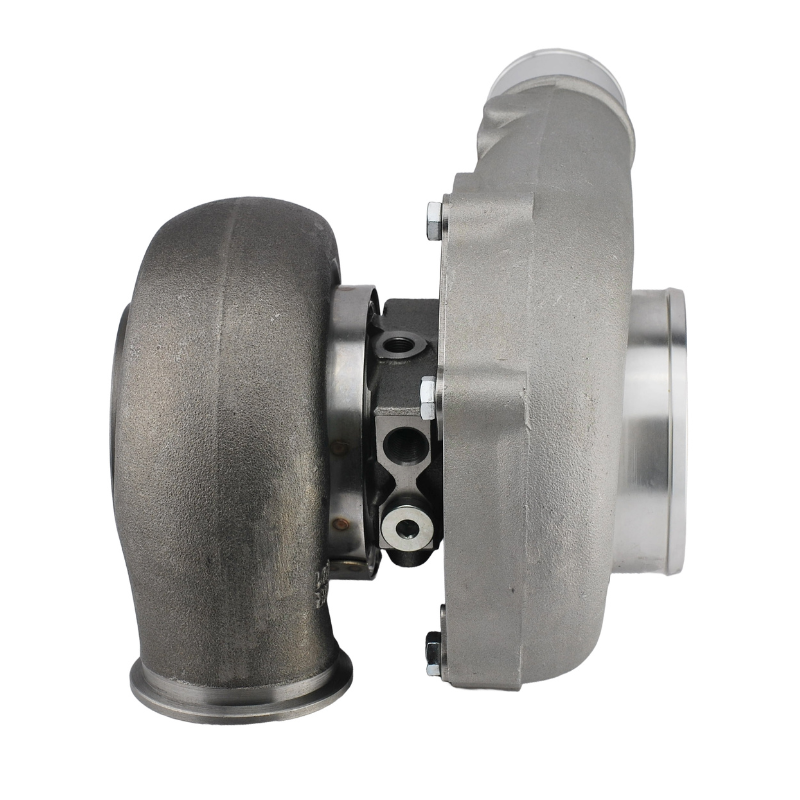

Hurricane 5855-770 A/R 1.21 Turbo

Hurricane 5855-770 A/R 1.21 Turbo

Hurricane 5855-770 A/R 1.21 Turbocharger is perfect for Drifting and Drag racing up to 770hp with the highest possible peak power.

Hurricane 5855-770 A/R 1.21 Turbo suits 2,0 to 3,5-liter engines and produces 475-770hp on Gasoline, -840hp on Ethanol or -500hp on Diesel. Smaller engines (2,0-2,8L) will get fast spool times with the 55mm turbine, while bigger engines (2,8-3,5L) will get even faster spool times. The A/R 1,21 turbine housing gets you the highest possible peak power.

Compressor
A/R 0.72
57.56/71.4mm
Speed sensor outlet.
Clamp type: 6-Bolt clamp kit (included)
Anti-surge: Yes
Speed sensor port: Yes
Vacuum port: 1/8 -27 NPT
Inlet hose diameter: 4" / 102mm
Outlet hose diameter: 2" / 51mm

CHRA
Oil inlet: Special thread for ball bearing turbochargers to not get mixed with journal bearing oil inlets.
Adapter with 1mm restrictor hole.
Oil outlet: 38mm CC
Bolt thread: M8x1,25mm
Return port ID: 13mm
Cone seal as standard.
Washer seal surface available for optional adapters.
Water ports: M14x1,5
4x water ports total
2x on each side of the chra
2 plugs included
Compressor side clamp type: 6-Bolt clamp style
Turbine side clamp type: 95mm V-band

Turbine
60/55mm
Turbine Wheel fit: 60/55mm
A/R: 1,21
Inlet: 76mm V-band (Singel entry)
Outlet: 90mm V-band
CHRA connection: 95mm V-band
Wastegate: No
Material: SiMo Controlled Cast iron
Temperature: -750 degrees (1382F) MAX: 800°C (1472°F)
Rotation: Standard
