Fuel level sensor
Fuel tank / fuel cell sensorLevel sensor for our fuel cell that also works with other fuel tanks.
-
Description

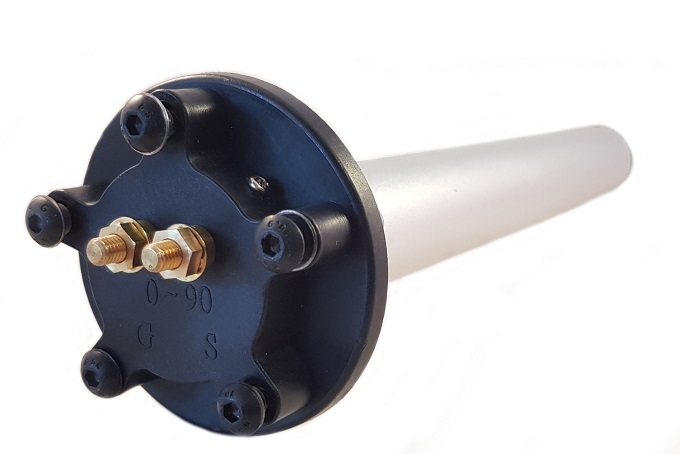

Fuel tank / fuel cell sensor
Level sensor for our fuel cell that also works with other fuel tanks.Fits most aftermarket gauges/ fuel meters with 0-90ohm. If you connect the sensor to a dash or control system, it is 0ohm min and 90 ohm max,
Technical data:
Diameter: 69mm
Body diameter: 31mm
Bolt CC: 53mm
Sensor length: 255mm
Total length: 280mm
Starting from tank: 25mm
Bolt diameter: M5
Resistance full: 90 Ohm
Resistance empty: 0 Ohm -
