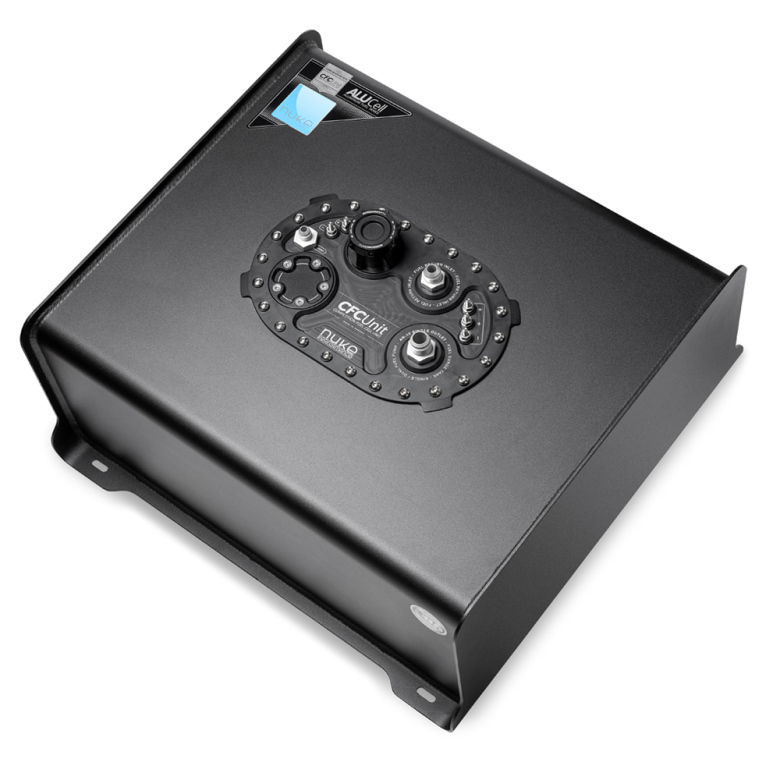

NUKE 60L Alu Fuel Cell with integrated surge tank

NUKE 60L Alu Fuel Cell with integrated surge tank

Nukes fuel cell is an affordable fuel cell for those who do not need an FIA approved one. Made of Aluminum and safe for gasoline, methanol, ethanol, E85.

Length: 577mm (22.71'')
Depth: 555mm (21.85'')
Height: 250mm (9.84'')

Fuel Cell contains:
1 x Aluminum fuel cell

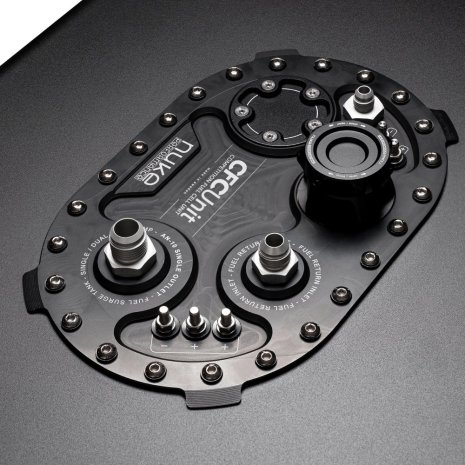

1 x Nuke Performance CFC unit
2 x 1/4" BSPP to 8mm hose fittings
1 x 1/4" BSPP plug (when using only one fuel pump)
2 x 39mm High Pressure Fuel Pump Bracket Inserts
1 x Viton gasket
1 x Low profile filler cap
1 x Dual Adjustable Fuel Pump Bracket
1 x AN8 (3/4 UNF) to AN6 male for vent valve
1 x FLS spacer
24 x 1/4-28 UNF x 1 bolts with nylon washers

Outlet: AN10
Return: AN8
Vent valve: AN8

*Not FIA approved*
