Bosch Performance injector 1500cc

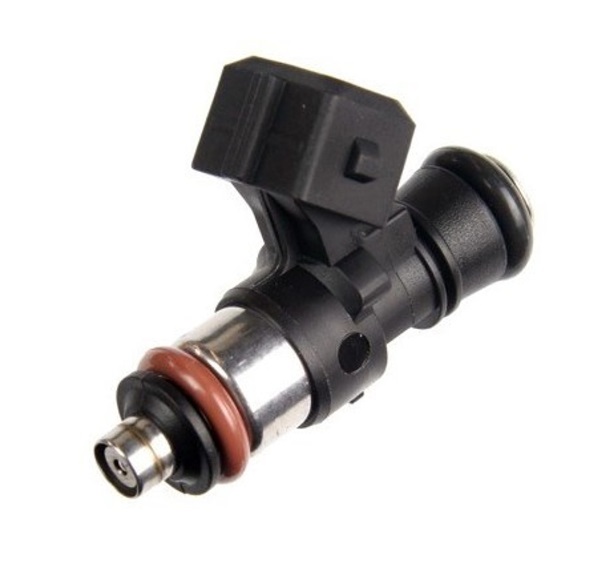

Bosch Performance Injector 1500cc

This newly developed and adequately tested Bosch injector is the largest Bosch injector designed for liquid fuel.

Name: Bosch 1500cc Performance
Part number: 0280158333 / 0280 158 333 / Bosch -333
Package: 1x
Connector: Bosch JPT EV1 Minitimer Jetronic
Length: 33,6mm - EV 14C (Compact) Use top adapter long to get 60,65mm EV 14L (Long)
Injector tip: 11mm
O-ring top: 14mm Viton
O-ring bottom: 14mm Viton
Body diameter: 16mm
Impedance: 8,5 ohm
Spray pattern: Conical (30 degrees)
Spray angle: Neutral (0 degrees)

Max flow measured static in test environment
Static flow @ 3bar (43.5psi) = 1450 cc/min
Static flow @ 4bar = 1690 cc/min
Static flow @ 5bar = 1900 cc/min

Please note that test environment versus practical use can vary widely depending on peripheral equipment and other technical factors. However, this is excellent information on what to expect from the injectors and essential information when choosing other components in the fuel system, such as fuel pump, fuel pressure regulator, and fuel filter.

Engine power Turbo
Petrol 10% margin
1cyl - 197hp (197x1)
4cyl - 788hp (197x4)
5cyl - 985hp (197x5)
6cyl - 1182hp (197x6)
8cyl - 1576hp (197x8)

Ethanol 10% margin
1cyl - 171hp (171x1)
4cyl - 684hp (171x4)
5cyl - 855hp (171x5)
6cyl - 1026hp (171x6)
8cyl - 1368hp (171x8)

Engine power N/A
Petrol 10% margin
1cyl - 257hp (257x1)
4cyl - 1028hp (257x4)
5cyl - 1285hp (257x5)
6cyl - 1542hp (257x6)
8cyl - 2056hp (257x8)

Ethanol 10% margin
1cyl - 214hp (214x1)
4cyl - 856hp (214x4)
5cyl - 1070hp (214x5)
6cyl - 1284hp (214x6)
8cyl - 1712hp (214x8)

Flow matching
These injectors are supplied with basic flow matching and checking that there is no leakage. The basic flow matching has acceptable tolerances within 3% variation over a dynamic register but documentation and other data are not included in this option.

When you choose that we do a real flow matching, we match the injectors even more accurately within 1% variation and documentation is included for the injectors and the flow matching. We also check more parameters such as spray pattern, resistance, etc.
