Hurricane motorsport Intake manifold safety valve
Hurricane motorsport Intake manifold safety valve
Hurricane motorsport Intake manifold safety valve
Hurricane motorsport Intake manifold safety valve

Hurricane motorsport Intake manifold safety valve

Adjustable opening pressure 56-85 psi / 4-6 bar

Part no: HC-0032
  • Description

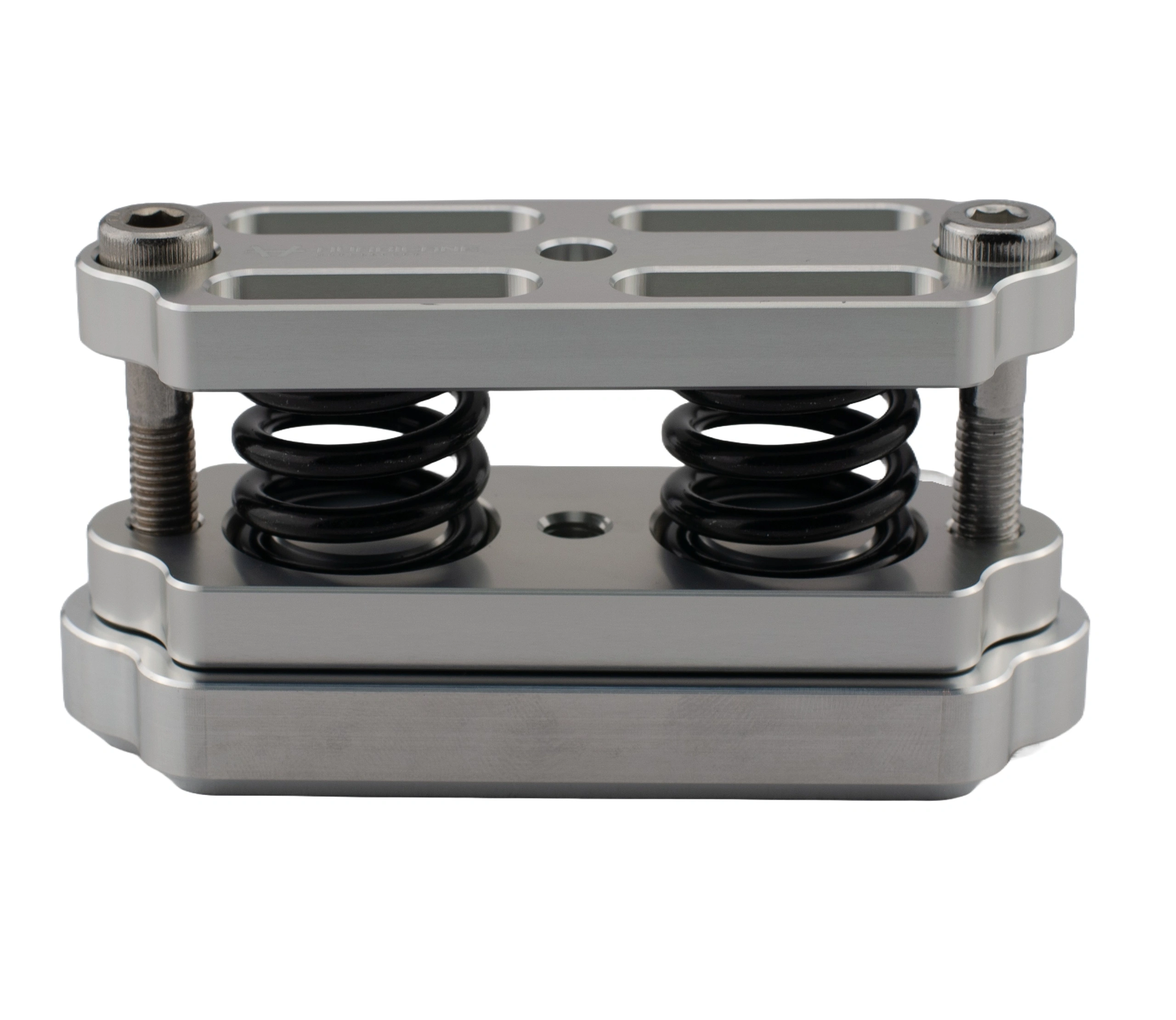

    Intake manifold safety valve

    Overpressure valve that prevents the intake manifold from cracking or completely break during backfires or similar pressure shocks. The valve also partially protects the engine in case of sudden increased boost pressure due to error with the control of the turbo boost. The valve is available with 3 different actuators, depending when the valve is to open. 4.5kg, 5kg and 6kg depending on how much load pressure the engine delivers. 4kg is most common. The valve will fully ventilate 1580mm3 at only 1mm movement to work against pressure shocks as effectively as possible.

    Components:

    1x Weld flange that easily is welded on the intake manifold
    1x O-ring sealed valve plate
    1x Top plate that holds the construction together
    2x Hexagonal bolts
    2x Springs

    Specification and assembly:

    Complete safety valve for intake manifold weight is 422 grams.

    Dimensions of weld flange:
    Width: 52mm
    Length: 124mm

    Height of fully assembled valve with inserts of 4kg is 53.5mm.
    Material: 6082 T6 Aluminium

    Adjustment measurements between Valve plate and Top plate
    56psi (4kg) = 19mm
    71psi (5kg) = 16mm
    85psi (6kg) = 14mm

    NOTE
    The hexagon bolts must be glued with loctite when assembled.
